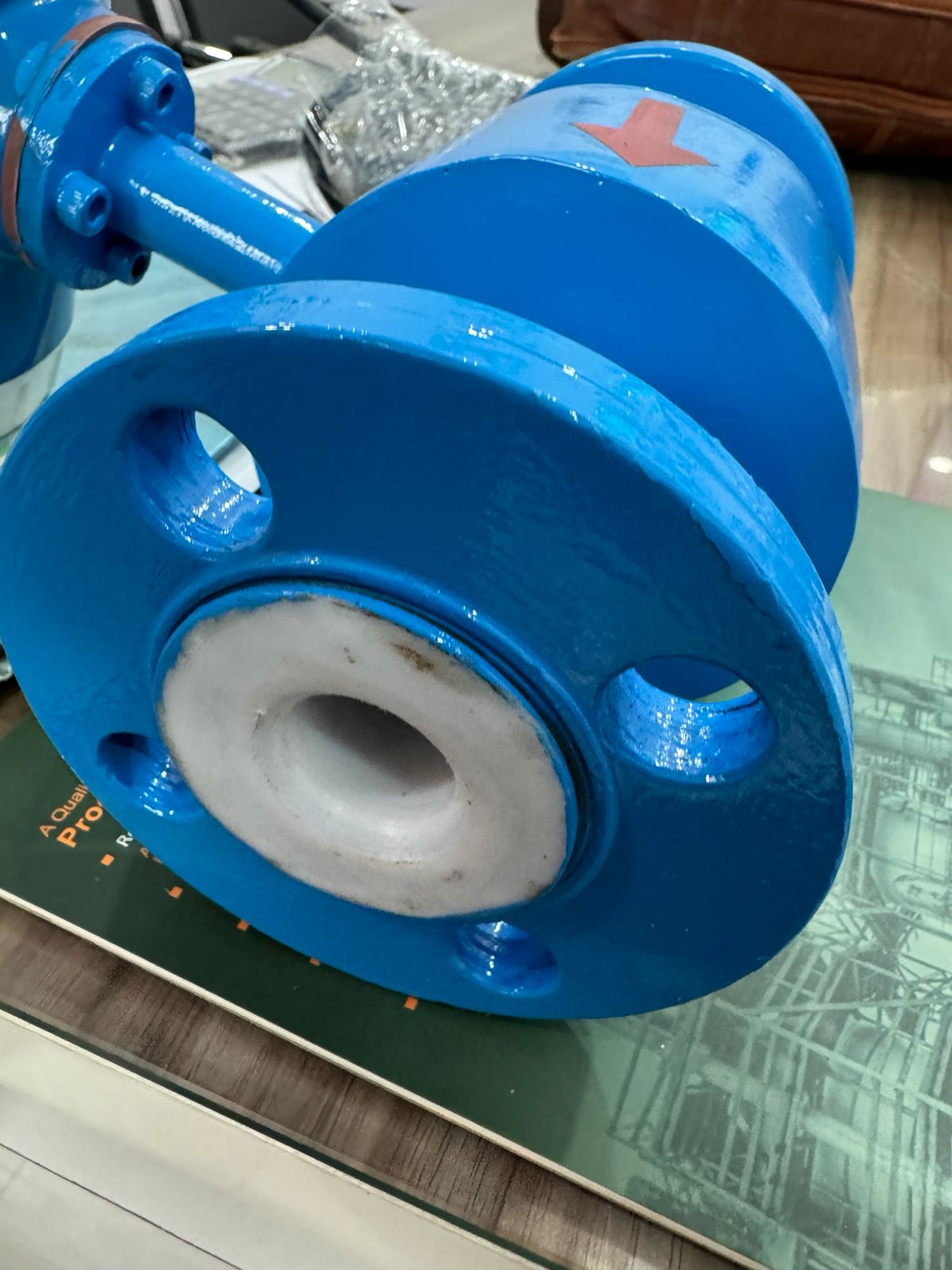

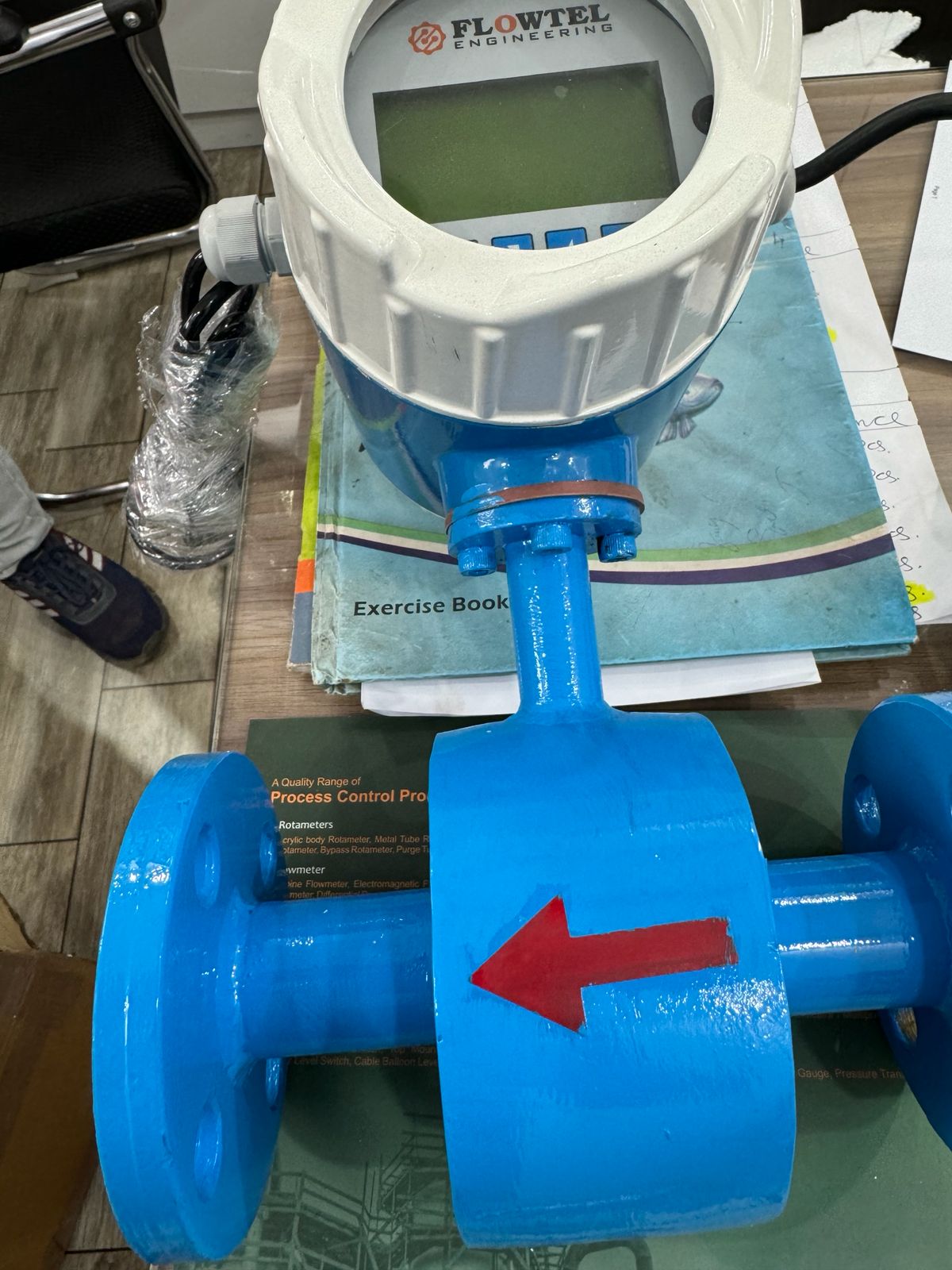

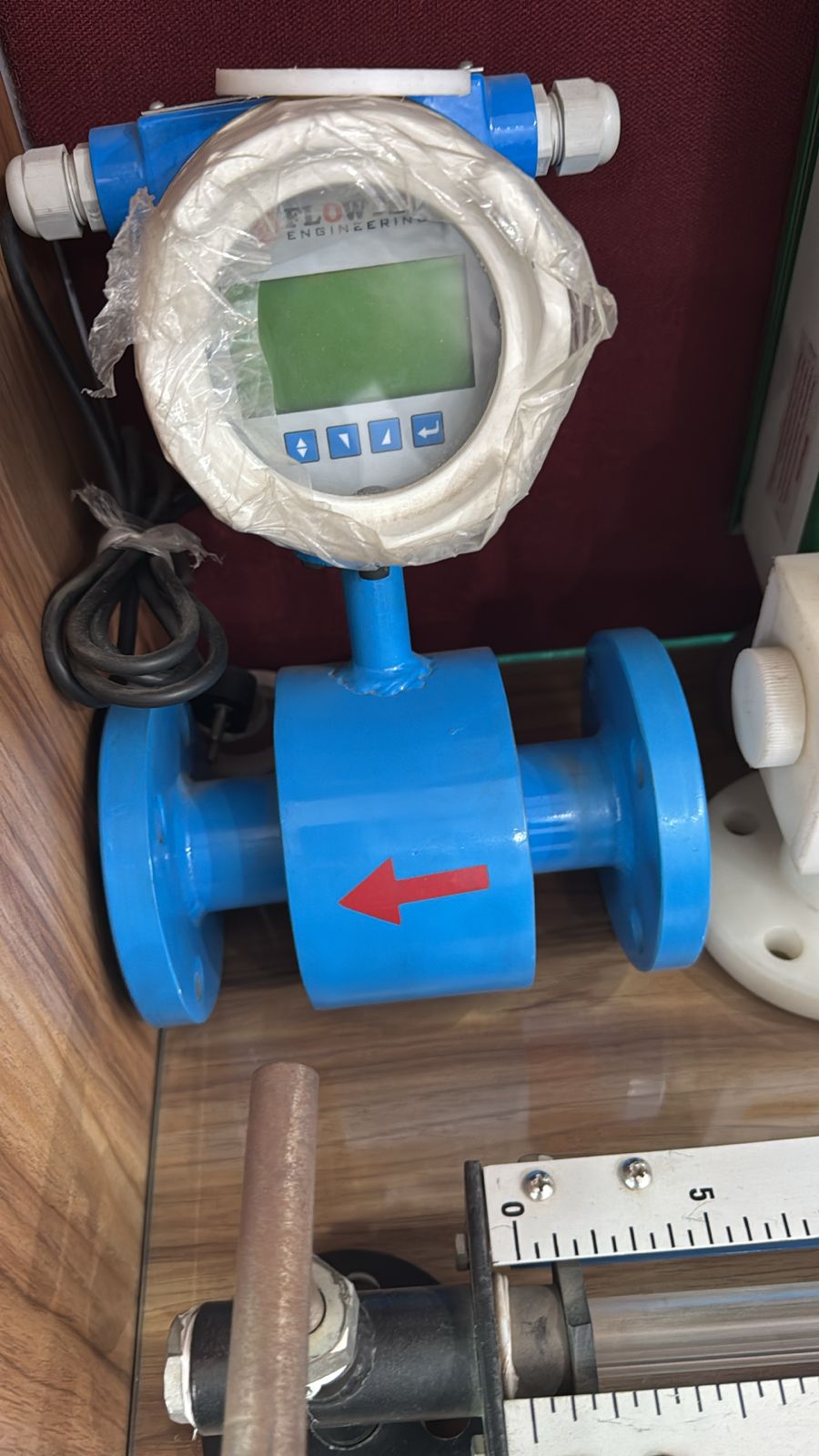

Electro Magnetic Flowmeter
Code: EMFM-FL, Model:
Micro controller based full bore type electromagnetic flow transmitter specially used for various industrial applications. These flow transmitters accurately measures the flow rate of conductive liquids & slurries in closed pipes. Due to simple & rigid design the flow transmitter is an obstruction less & maintenance free instrument in place of conventional mechanical flow measuring device. The use of 'Pulsed DC' technology offers highest ability & better measuring accuracy in the form of electrical signal 4 - 20 mA DC linearly proportional to volumetric flow. The instrument is based on Faraday's law of electro-magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage.
Product Details
Technical Specifications
| Media | Liquids (Clear) |
| Line Size | 15 NB to 2000 NB. |
| Accuracy | +/- 0.5% F. S. |
| Process Temperature | 150 °C max |
| Type of Output | 4 to 20 mA DC, Isolated, Pulse, RS 485 |
| Calibration Range | As per requirement (Factory Calibrated) |
| Process Pressure | 10 kg/cm2 max |
| Material of construction |

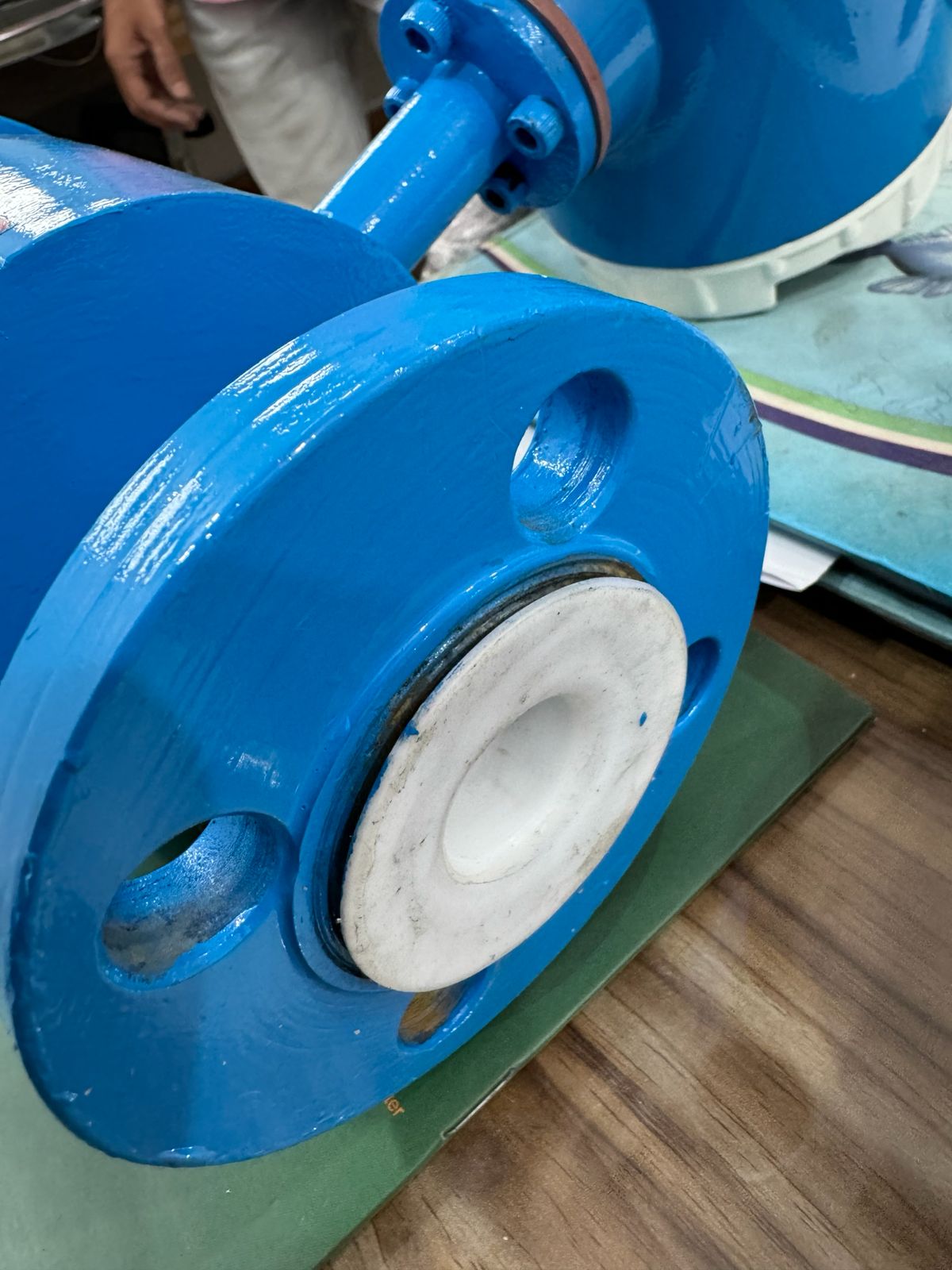

Lining - Neoprene / Rubber / PTFE (Teflon)
|
| Power Supply |
|
| Isolation | 1.4 KV between Input, Output & Power Supply |
| Temperature Coefficient | +/- 0.1% per °C |
| Display |
|
| Repeatability | +/- 1% |
| Linearity | +/- 0.5% |
| Excitation | Pulsed DC coil |
| Viscosity | 200 cp max |
| Dimensions | As per chart on rear |
| Process Connections | ASA B 16.5, Flanged |
| Mounting | In-Line (Horizontal or Vertical) |
Flow Range & Distance Data
| Line Size: 25 | Flow Range M³/Hr | F/F Distance |
| 15 | 0.4-4.2 | 152 |
| 20 | 0.6-6 | 152 |
| 25 | 1-10 | 200 |
| 40 | 2.7-27 | 200 |
| 50 | 4.2-42 | 200 |
| 65 | 7.1-71 | 200 |
| 80 | 10-100 | 200 |
| 100 | 17-170 | 250 |
| 150 | 38-380 | 300 |
| 200 | 67-678 | 350 |
| 250 | 100-1000 | 450 |
| 300 | 150-1500 | 500 |
| 350 | 200-2000 | 550 |
