Multijet Water Metet
Flowtel Engineering offers high quality Multijet Water Meters designed for accurate and reliable water flow measurement in residential, commercial, and industrial applications. Built with robust materials and advanced metering technology, these meters provide high sensitivity, low pressure loss, long-term stability, and minimal maintenance. Flowtel Engineering ensures dependable performance, precision, and durability, meeting industry standards for efficient water management and monitoring.
Multijet Water Metet
Code: MJWM-FL, Model: FEWMJ
Flowtel Engineering offers high quality Multijet Water Meters designed for accurate and reliable water flow measurement in residential, commercial, and industrial applications. Built with robust materials and advanced metering technology, these meters provide high sensitivity, low pressure loss, long-term stability, and minimal maintenance. Flowtel Engineering ensures dependable performance, precision, and durability, meeting industry standards for efficient water management and monitoring.
Product Details
Features
➢ ISO 4064 Class-B
➢ Extra Dry Dial
➢ Size ranges from ½"-2"
➢ High sensitivity, low pressure loss
➢ Double Strainers - Inlet & Internal are standard
➢ Available for both cold water(30℃) and hot water(90℃)
➢ 100% of the products are calibrated and all calibration results can be provided
➢ Hermetically sealed register ensures that all internal parts are clean and prevents fogging throughout the entire lifetime of the meter
➢ Robust copper alloy body to pass the strongest resistance tests in both static & dynamic conditions.
➢ Shock-resistant material for register and closure
➢ High performance magnetic transmission ensures no part of the register is in contact with water
➢ Interchangeable spare parts for easy online maintenance

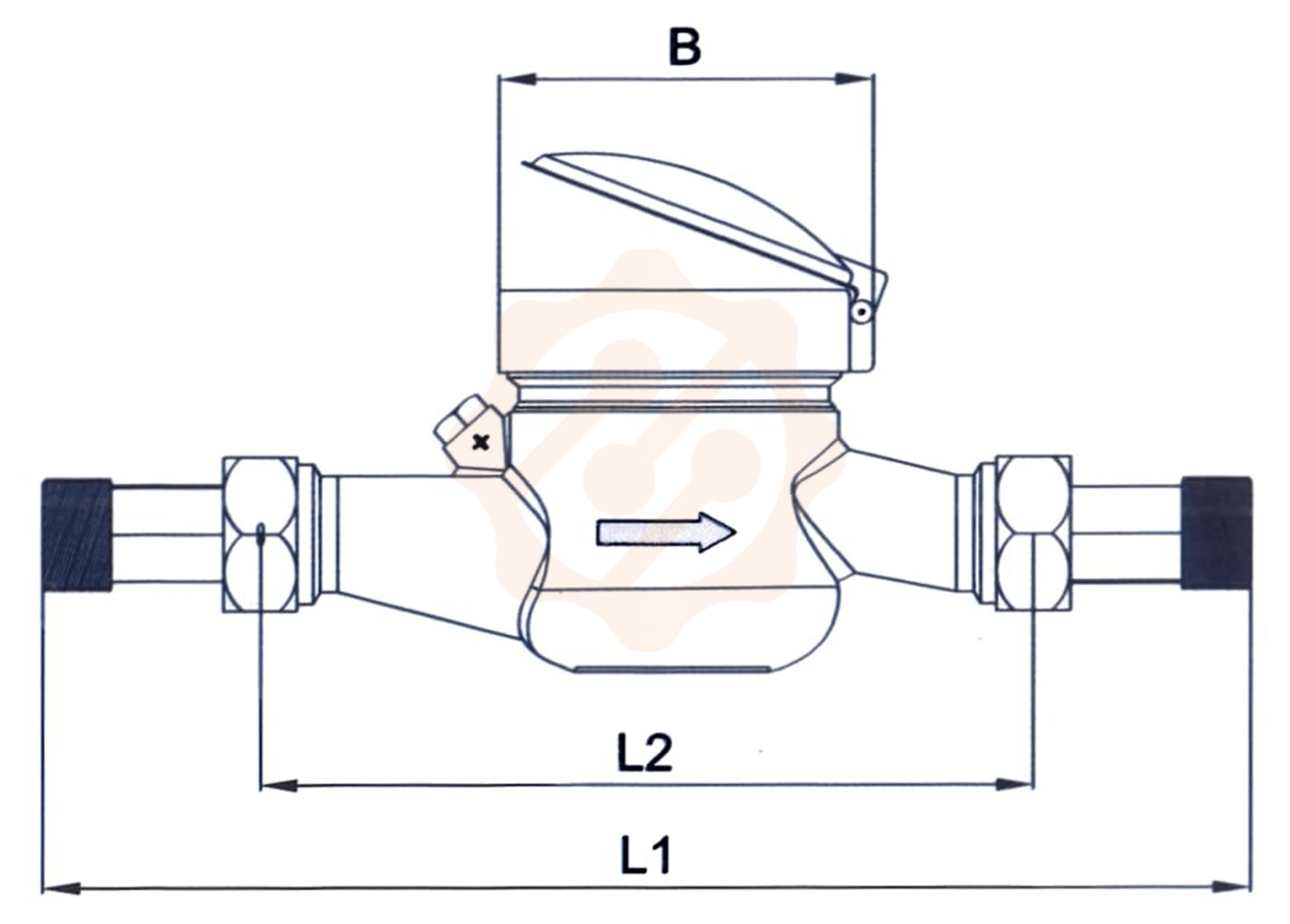

Overall Dimensions (mm)
| Meter Size (mm) | Length (mm) | B(mm) | H1+H2 (mm) | Connecting Thread (DN) | |
| L1(with nipples) | L2(without nipples) | ||||
| 15 | 250 | 165 | 99 | 104 | G3 / 4B |
| 20 | 290 | 190 | 99 | 106 | G 1B |
| 25 | 380 | 260 | 104 | 120 | G.1.25 B |
| 40 | 430 | 300 | 125 | 155 | G 2B |
| 50 | 470 | 330 | 125 | 155 | G 2.5 B |
Metrological Data
| Meter Size (mm) | Class | Qmax l/h | Qn l/h | Qt l/h | Qmin l/h | Max. Pressure (Bar) | Min. Reading | Max. Reading |
| 15 | B | 3000 | 1500 | 120 | 30 | 16 | 0.0001 | 99999.9999 |
| 20 | B | 5000 | 2500 | 120 | 50 | 16 | 0.0001 | 99999.9999 |
| 25 | B | 7000 | 3500 | 280 | 70 | 16 | 0.0001 | 99999.9999 |
| 40 | B | 20000 | 10000 | 800 | 200 | 16 | 0.001 | 99999.9999 |
| 50 | B | 30000 | 15000 | 1200 | 300 | 16 | 0.001 | 99999.9999 |
